01Structural steel parts
Gussets, base plates, flanges, stiffeners, splice plates and brackets — cut from S235 / S355 to shop drawings, with holes and markings ready for assembly.
- Thickness 3 – 20 mm
- Holes and cut-outs in one pass
- Position marking
CNC laser cutting
Parts cut exactly to drawing, from prototype to series
We cut carbon steel, stainless, aluminium, corten and brass sheet straight from your DXF, DWG or STEP files. Clean, burr-free edges, ready for bending, welding or coating — in the same workshop.
- Steel up to 20 mm · stainless 12 mm · aluminium 10 mm
- ±0.5 mm tolerances
- Nesting from your files
Applications
What we cut for our partners
Four part families we deliver routinely — for steel fabricators, architects, equipment manufacturers and workshops that outsource cutting.
01

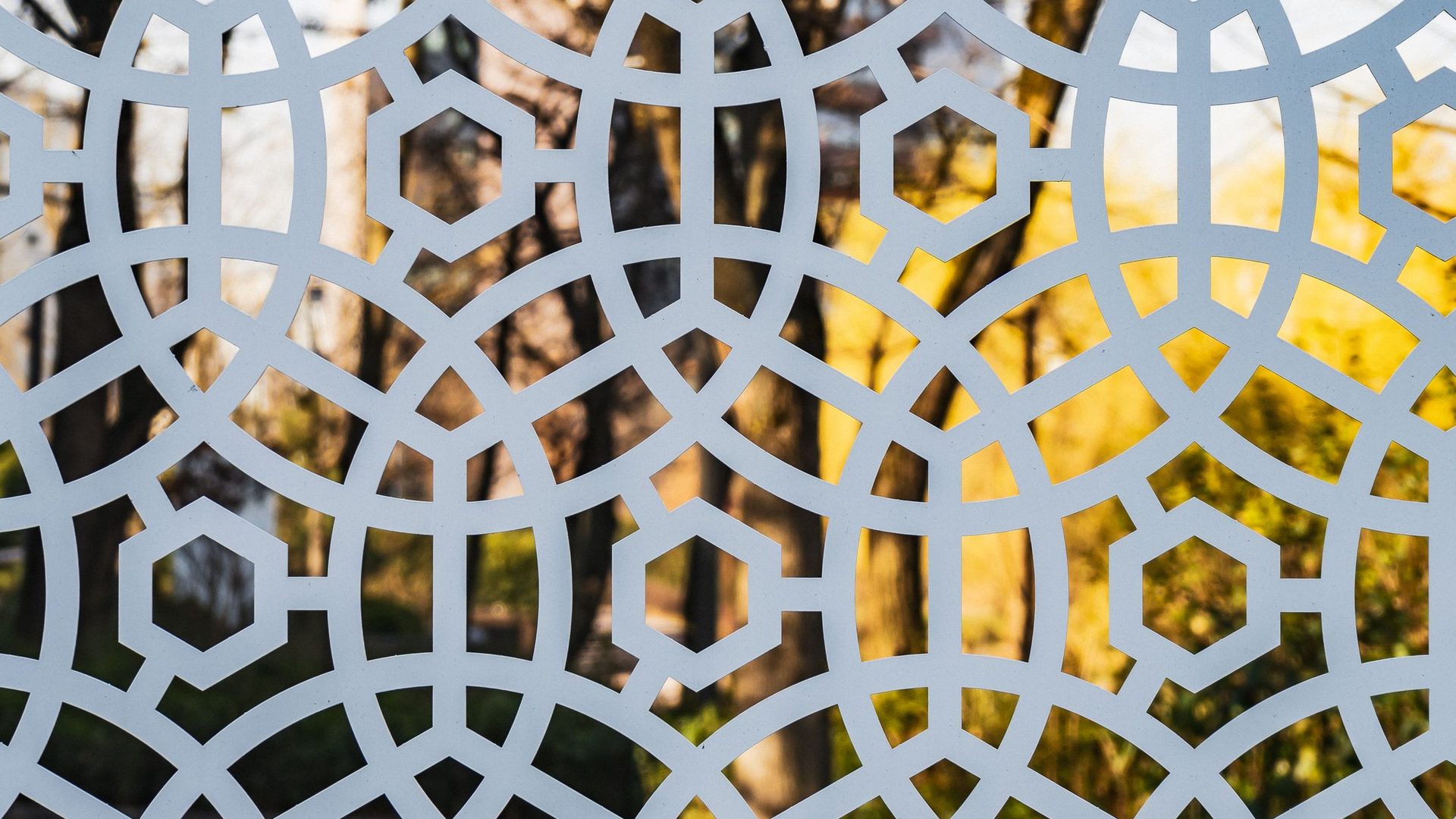

02Decorative panels & façades
Perforated panels, parametric patterns, louvres and cassettes for façades, screens and interiors — in aluminium, corten or steel, ready for coating.
- Perforations from Ø 3 mm
- Panels up to 3,000 × 1,500 mm
- DXF validated before cutting
03Furniture & equipment components
Legs, frames, side panels, supports and housings — flat parts that go on to bending and welding for furniture, retail and equipment manufacturers.
- Sheet 1 – 6 mm
- Accuracy for assembly without rework
- Repeatable monthly series
04Prototyping & small batches
One part or ten, same day or next day — for design offices, hardware start-ups and workshops that need a correct prototype before series.
- No tooling cost
- Fast file revisions
- Direct path from prototype to series
For workshops & manufacturers
Cutting capacity you can rely on
We work as a subcontractor for steel fabricators, equipment manufacturers and workshops without their own laser or in need of extra capacity. We receive the files, confirm the nesting and deliver on time — in Romania and across the EU.
- 01
DXF / DWG / STEP files
We work straight from your files. We check geometry, close contours and flag problematic dimensions before cutting.
- 02
Optimised nesting
We lay out parts on the sheet for minimal material loss — cost per part drops with volume.
- 03
Our stock or your material
We cut from our sheet (with material certificate) or from material you supply.
- 04
Repeatable series
Programs stay archived; the second, tenth or hundredth order comes out identical to the first.
- 05
Firm lead times
Prototypes in 24–72h, series planned in batches, lead time confirmed at quotation.
- 06
Full flow in-house
Cut parts go straight to bending, welding and coating — one supplier, one responsibility.
Technical parameters
Materials and thicknesses
The values below are what we work with routinely. For larger thicknesses or formats, ask us — many requests are handled on demand.
| Material | Thickness | Sheet format | Typical tolerance | Notes |
|---|---|---|---|---|
| Carbon steel S235 / S355 | 0.5 – 20 mm | 3,000 × 1,500 mm | ±0.5 mm | Clean edge, burr-free up to 12 mm |
| Stainless 304 / 316 | 0.5 – 12 mm | 3,000 × 1,500 mm | ±0.5 mm | Nitrogen cutting — oxide-free edge |
| Aluminium | 0.5 – 10 mm | 3,000 × 1,500 mm | ±0.5 mm | Suited to façades and decorative panels |
| Corten | 1 – 10 mm | 3,000 × 1,500 mm | ±0.5 mm | Panels, signage, planters |
| Brass / copper | 0.5 – 6 mm | on request | ±0.5 mm | Decorative and interior elements |
| Tube & profile | on request | — | — | Cutting to length, holes and cut-outs |
Indicative values. Tighter tolerances are possible on thin gauges on request. Larger sheet formats — ask before designing.
Files & preparation
What to send us to get started
The cleaner the file, the faster the quote. If you only have a sketch or a physical part, we turn it into a production-ready file.
01
DXF / DWG at 1:1
Closed contours, no overlapping lines, no text in the geometry. One file per part or one file with all parts — both work.
02
STEP / 3D
From the 3D model we extract flat patterns and prepare parts for bending, with radius compensation.
03
Dimensioned PDF / sketch
We redraw the part in CAD and send you the file for approval before cutting.
04
Sample part
We measure and digitise the existing part — useful for replacements and repairs.
How we work
From file to delivered parts, in 4 steps
01
Files & quantities
Send the files, the material, thickness and quantities. We reply with a quote within 24h.
02
Check & nesting
We verify geometry, nest the parts on the sheet and confirm the lead time.
03
Cutting & inspection
We cut, deburr where needed and check dimensions on every batch.
04
Delivery or next step
We pack and ship — or move the parts on to bending, welding and coating.
What you receive
Parts ready for the next step
We deliver inspected, marked and packed flat parts — or take them further through bending, welding and coating if the project requires.
- 01
Cut & deburred parts
Clean edges, oxide-free on stainless, burr-free on standard gauges.
- 02
Position marking
On request we engrave the part number or position on each part — useful for large assemblies.
- 03
Material certificate
On every batch cut from our material, with traceability.
- 04
Palletised packing
Separated by part number, protected for transport in Romania and the EU.
Data sheet
Technical data
- Materials
- Carbon steel S235 / S355 · stainless 304 / 316 · aluminium · corten · brass · copper
- Thicknesses
- Steel up to 20 mm · stainless up to 12 mm · aluminium up to 10 mm
- Sheet format
- 3,000 × 1,500 mm standard; larger formats on request
- Tolerances
- ±0.5 mm typical; tighter on thin gauges on request
- Files
- DXF, DWG, STEP, IGES; PDF / sketch — we redraw
- Quantities
- From 1 part to series of thousands
- Lead time
- Prototypes 24–72h · series in batches, confirmed at quotation
- Next steps
- Press-brake bending, MIG / TIG / laser welding, powder coating — same workshop
FAQ
What partners ask us
How much does laser cutting cost?+
Price is based on cutting time and material — it depends on thickness, contour length and quantity. Send us the files and quantities and we reply within 24h; for series, cost per part drops significantly.
Which files do you accept?+
DXF and DWG at 1:1 are ideal. We also accept STEP / IGES (we extract flat patterns) or dimensioned PDFs and sketches, which we redraw and send for approval.
Can you cut my material?+
Yes. We receive your sheet, check it and cut it. For complete quotes we use our own stock, with material certificate.
Do you also bend, weld and coat?+
Yes — that is the advantage of our workshop: cut parts go straight to the press brake, welding and coating, with no transport between suppliers. You receive finished assemblies, not just flat parts.
What is the lead time for a prototype?+
Usually 24–72h from file approval, depending on material and workshop load. Series are planned in batches, with lead time confirmed at quotation.
Do you deliver outside Romania?+
Yes, we deliver cut parts across the EU (Germany, Austria, Italy, France, Benelux) on pallets, with intra-community invoicing.
Quote within 24h
Send us your files and quantities. We reply with price and lead time.
Mention material, thickness and quantity per part. If you also need bending, welding or coating, tell us — we quote the full flow.
